무쏘파워시스템 표준형 로울러 체인은 동력전달용 로울러 체인으로써 표준규격에 준하여 중국 현지 공장에서 OEM생산 공급하고 있습니다.
(체인 핀의 형식으로는 코타핀 형식과 리벳트 핀 형식이 있습니다.)

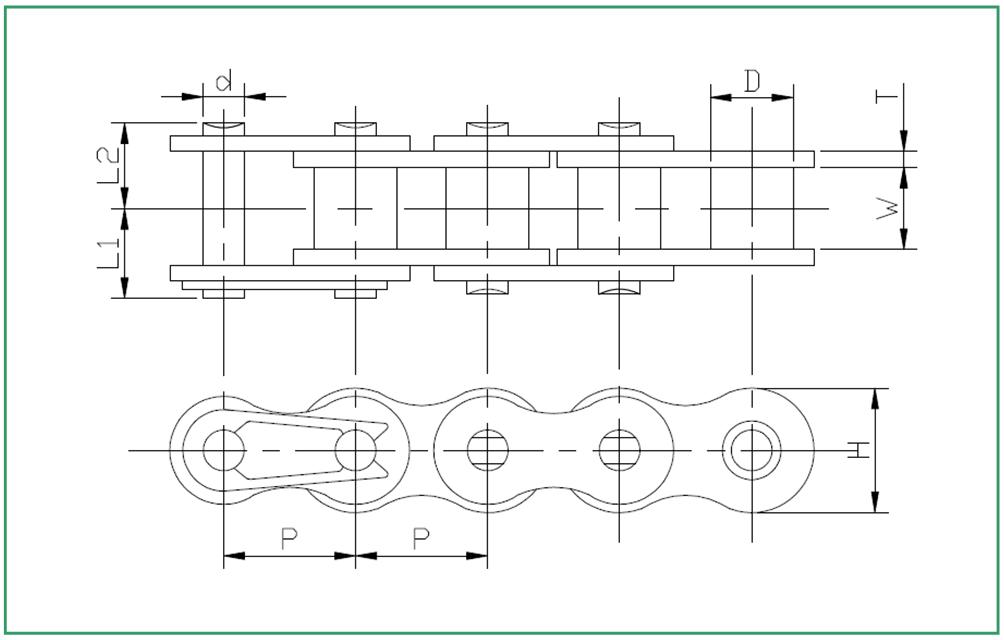

체인번호
열수
핏치
P
로울러
링크내폭
W
로울러
외경
Dr
핀
링크 플레이트
KS
파단하중
(kg·f)
DY
파단하중
(kg·f)
최대
허용하중
(kg·f)
개량
(kg/m)
단위당
링크수
경
D
치수
L1+L2
치수
L1
치수
L2
두께
T
폭
H
MS25
1
6.35
3.18
3.30
2.31
8.60
3.80
4.80
0.75
6.0
360
480
65
0.14
480
2
6.35
3.18
3.30
2.31
15.0
7.0
8.0
0.75
6.0
720
960
110
0.27
MS35
1
9.525
4.78
5.08
3.59
12.7
5.85
6.85
1.25
9.0
800
1,150
220
0.33
320
2
9.525
4.78
5.08
3.59
22.8
10.9
11.9
1.25
9.0
1,600
2,300
370
0.69
3
9.525
4.78
5.08
3.59
32.9
16.0
16.9
1.25
9.0
2,400
3,450
550
1.05
MS40
1
12.70
7.95
7.95
3.97
17.45
8.25
9.95
1.5
12.0
1,420
1,950
370
0.64
240
2
12.70
7.95
7.95
3.97
32.6
15.45
17.15
1.5
12.0
2,840
3,900
630
1.27
3
12.70
7.95
7.95
3.97
46.8
22.65
24.15
1.5
12.0
4,260
5,850
930
1.90
4
12.70
　
　
　
　
　
　
　
　
5,680
7,800
1,220
2.53
MS50
1
15.875
9.53
10.16
5.09
22.3
10.3
12.0
2.0
15.0
2,210
3,200
650
1.04
192
2
15.875
9.53
10.16
5.09
40.5
19.35
21.15
2.0
15.0
4,420
6,400
1,100
2.07
3
15.875
9.53
10.16
5.09
58.6
28.4
30.2
2.0
15.0
6,630
9,600
1,630
3.09
4
15.88
　
　
　
　
　
　
　
　
8,840
12,800
2,150
4.11
MS60
1
19.05
12.70
11.91
5.96
28.1
12.85
14.75
2.4
18.1
3,200
4,400
900
1.53
160
2
19.05
12.70
11.91
5.96
51.0
24.25
26.75
2.4
18.1
6,400
9,000
1,530
3.04
3
19.05
12.70
11.91
5.96
73.8
35.65
38.15
2.4
18.1
9,600
13,500
2,250
4.54
4
19.05
　
　
　
　
　
　
　
　
12,800
18,000
2,970
6.04
MS80
1
25.4
15.88
15.88
7.94
35.5
16.25
19.25
3.2
24.1
5,650
8,000
1,500
2.66
120
2
25.4
15.88
15.88
7.94
64.8
30.9
33.9
3.2
24.1
11,300
16,000
2,550
5.27
3
25.4
15.88
15.88
7.94
94.1
45.6
48.5
3.2
24.1
16,950
24,000
3,750
7.89
4
25.4
　
　
　
　
　
　
　
　
22,600
32,000
4,950
10.50
MS100
1
31.75
19.05
19.05
9.54
42.6
19.75
22.85
4.0
30.1
8,850
12,000
2,300
3.99
96
2
31.75
19.05
19.05
9.54
78.5
37.7
40.8
4.0
30.1
17,700
24,000
3,910
7.85
3
31.75
19.05
19.05
9.54
114.4
55.65
58.75
4.0
30.1
26,550
36,000
5,750
11.77
4
31.75
　
　
　
　
　
　
　
　
35,400
48,000
7,590
15.70
MS120
1
38.10
25.4
22.23
11.11
53.8
24.9
28.9
4.8
36.2
12,800
17,000
3,100
5.93
80
2
38.10
25.4
22.23
11.11
99.2
47.6
51.6
4.8
36.2
25,600
32,600
5,270
11.70
3
38.10
25.4
22.23
11.11
144.8
70.4
74.4
4.8
36.2
38,400
48,900
7,750
17.53
4
38.10
　
　
　
　
　
　
　
　
51,200
65,200
10,230
23.36
MS140
1
44.45
25.4
25.4
12.71
58.6
26.9
31.7
5.6
42.2
17,400
22,000
4,100
7.49
68
2
44.45
25.4
25.4
12.71
107.5
51.3
56.15
5.6
42.2
34,800
42,800
6,970
14.83
3
44.45
25.4
25.4
12.71
156.6
75.85
80.75
5.6
42.2
52,200
64,200
10,250
22.20
4
44.45
　
　
　
　
　
　
　
　
69,600
85,600
13,530
28.52
MS160
1
50.80
31.75
28.58
14.29
68.7
31.85
36.85
6.4
48.2
22,700
27,500
5,400
10.10
60
2
50.80
31.75
28.58
14.29
127.3
61.15
66.15
6.4
48.2
45,400
54,000
9,180
20.04
3
50.80
31.75
28.58
14.29
185.9
90.45
95.45
6.4
48.2
68,100
81,000
13,500
30.02
4
50.80
　
　
　
　
　
　
　
　
90,800
108,000
17,820
40.06
MS180
1
57.14
35.72
35.71
17.46
78.1
35.65
42.45
7.2
54.2
28,700
36,500
6,200
13.45
54
2
57.14
35.72
35.71
17.46
144.1
68.75
75.35
7.2
54.2
57,400
73,000
10,540
26.52
3
57.14
35.72
35.71
17.46
210.2
101.7
108.5
7.2
54.2
86,110
109,500
15,500
38.22
4
57.14
　
　
　
　
　
　
　
　
114,815
146,000
20,460
50.90
MS200
1
63.50
38.10
39.68
19.85
83.8
39.0
44.8
8.0
60.3
35,400
47,000
